Handling different data types, quality checking and preparing data files

Barbara Lazzari, Matilde Passamonti, Paolo Cozzi, Stefano Capomaccio

Practical introduction

To follow this and other practicals, a working *NIX environment is required. We suggest to use a Linux distribution, MacOS or Windows with WSL2.

If you don’t have a working environment, you can use GitPod, a cloud-based IDE that allows you to work on your projects from anywhere. We suggest:

  • A GitHub account to manage authentication.
  • A Linkedin account to get access to 50 hours of free usage per month.

Introduction to GitPod

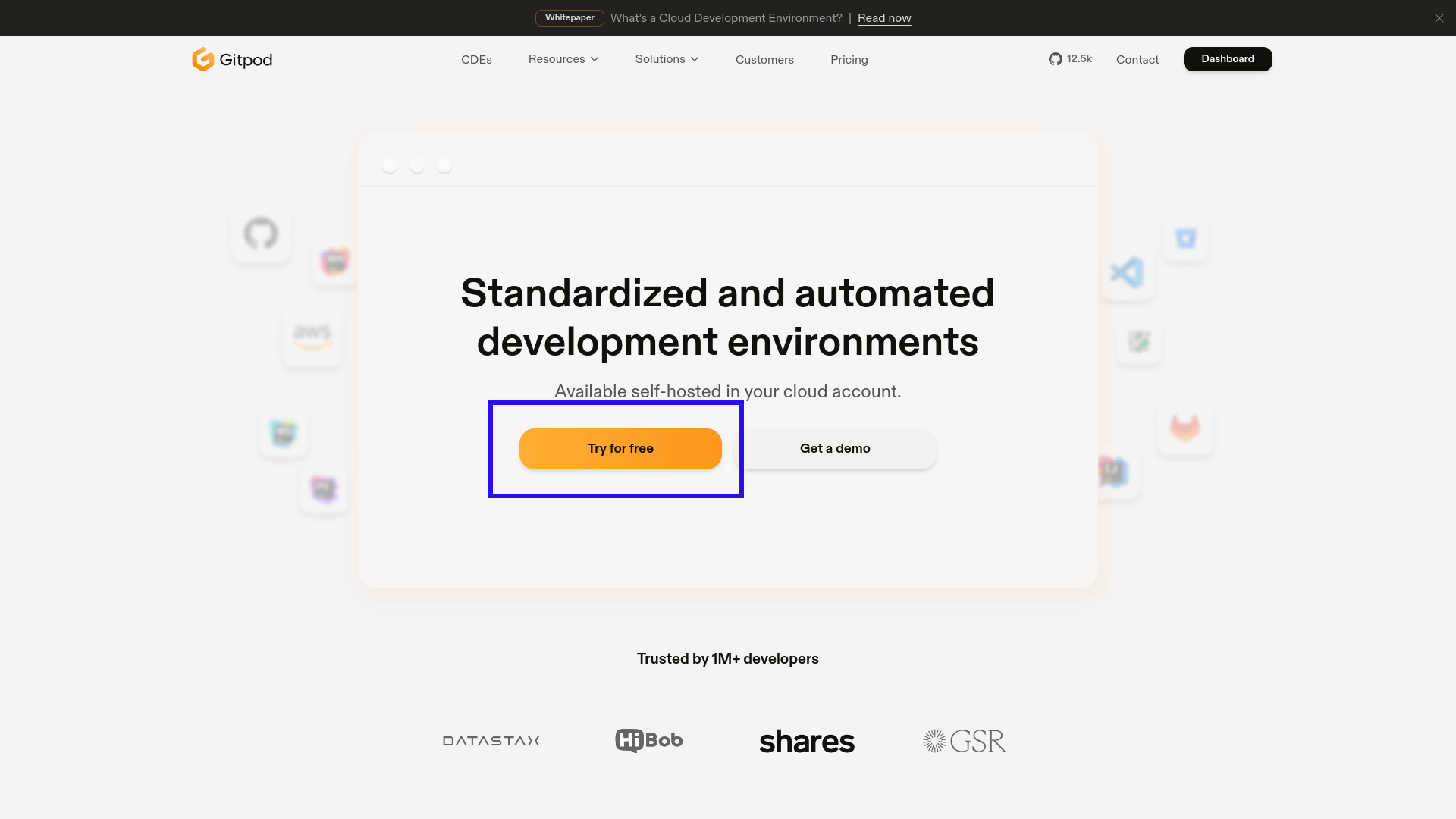

Go to https://www.gitpod.io/ and select the Try for free button

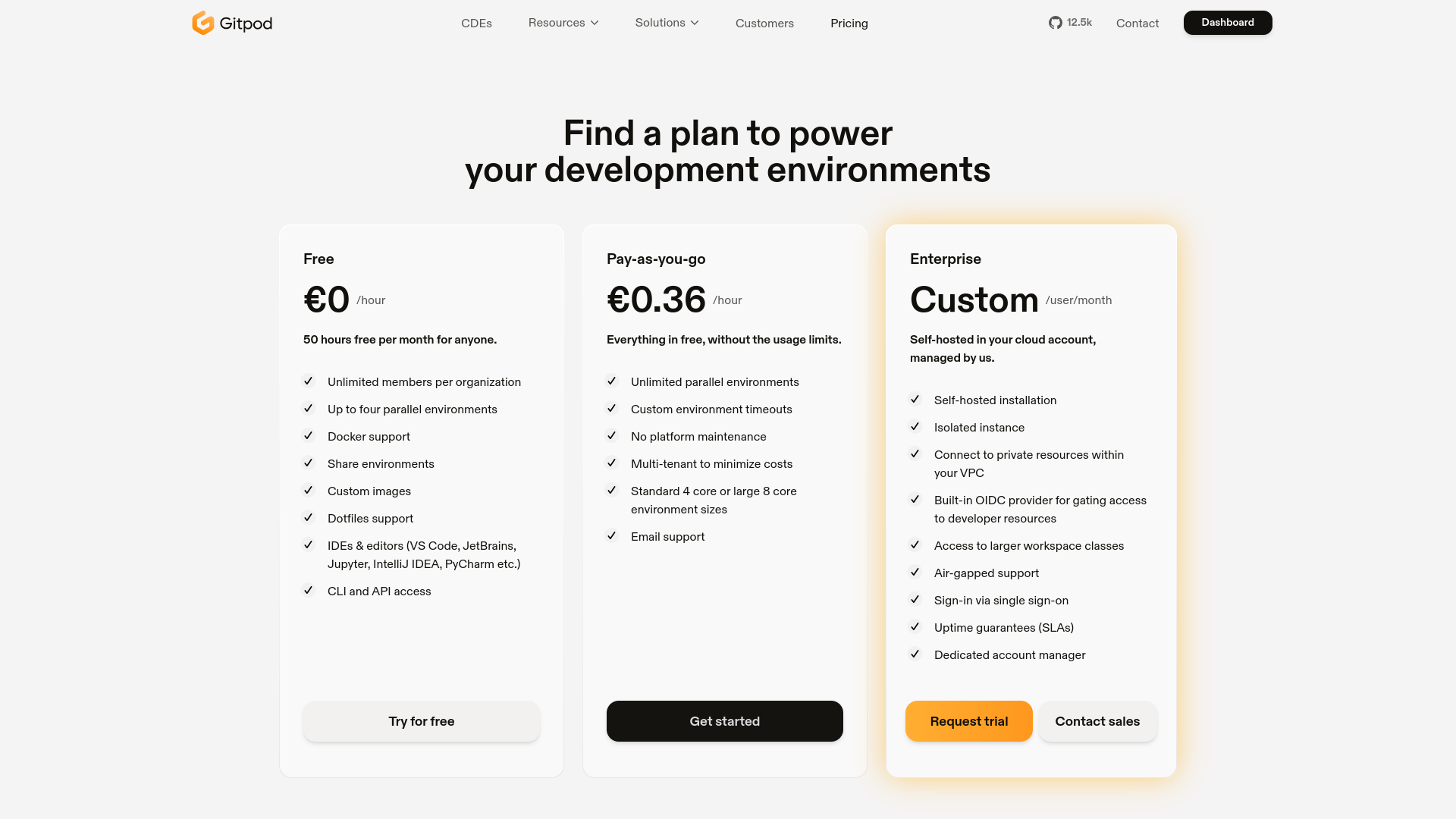

GitPod pricing plans

See your resource usage at https://gitpod.io/billing

GitPod Workspaces

https://gitpod.io/workspaces

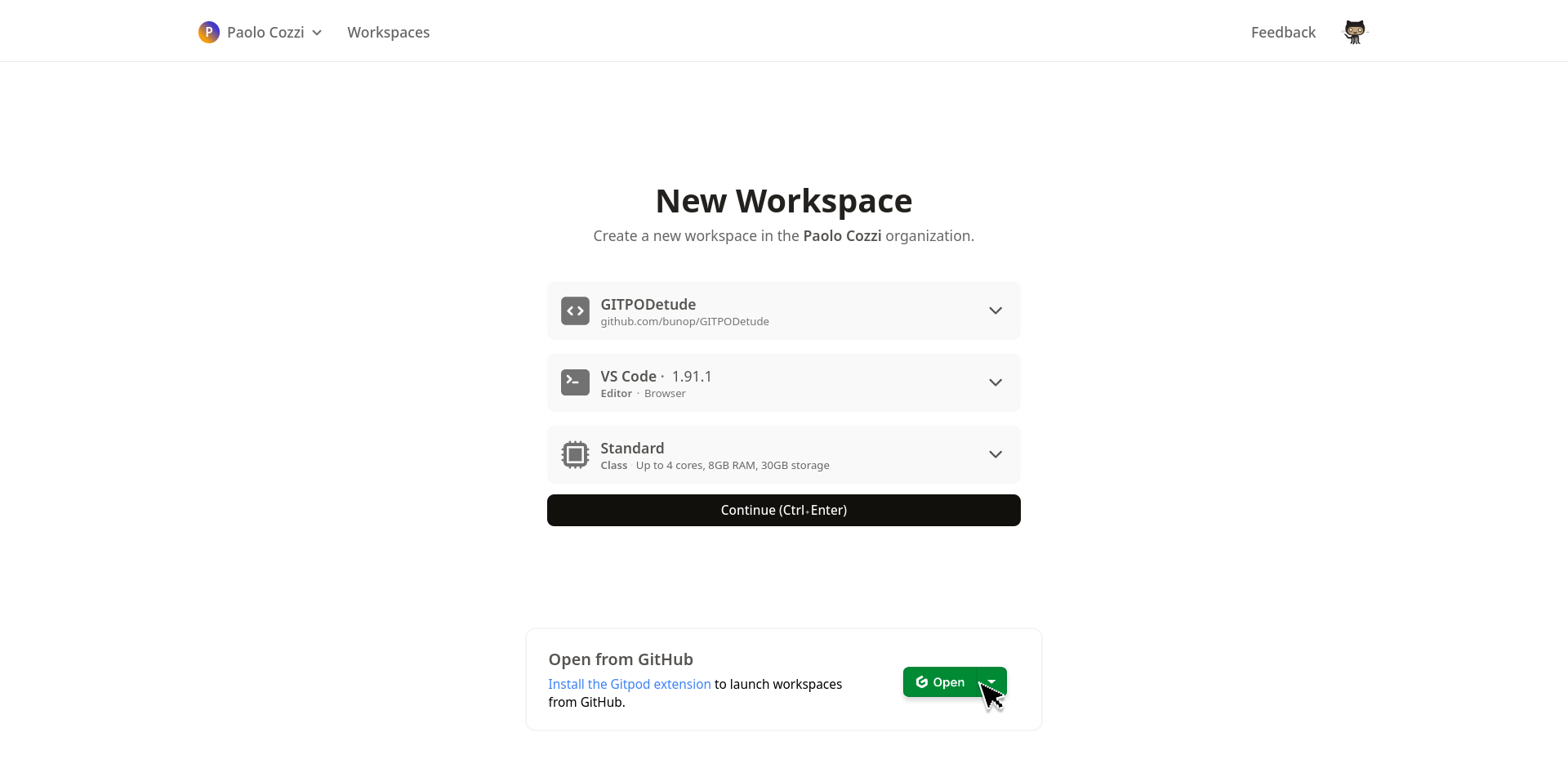

Create a workspace

Click here to create a new workspace for this project!

VS Code in GitPod

Take a look at VS Code tutorial, for example this one

Turning off Workspaces

GitPod CLI

You can install the GitPod CLI to manage your workspaces from the terminal

# login to GitPod
gitpod login

# list available workspaces
gitpod workspace list

# start a workspace
gitpod workspace start <workspace ID>

# open a linux terminal into workspace
gitpod workspace ssh <workspace ID>

Workspaces lifecycle

  • Workspaces are automatically stopped after 30 minutes of inactivity or after 8 hours (using a free plan)
    • Only files and directories inside /workspace directory are preserved.
  • Workspaces are deleted after 14 days
    • remember to save your work
  • Please see Workspace Lifecycle for more information

Using the Command Line

For scientific computing, a command-line interface (CLI) is often essential. This means typing out commands instead of using a graphical user interface (GUI).

  • Numerous tools are exclusively available as command-line utilities.
  • Once familiar, the CLI can be faster and more precise.
  • Tasks can be easily automated through scripting.
  • High-performance computing (HPC) environments often rely solely on CLI access.

Filesystem Hierarchy

The filesystem is organized in a tree-like structure, with the root directory / at the top.

  • / is the root directory.
  • /home contains user directories.
  • /usr contains user programs.
  • /bin contains essential binaries.
  • /etc contains system configuration files.
  • /var contains variable data.
  • /tmp contains temporary files.
  • /workspace specific to GitPod.

Dhanusha Dhananjaya, CC BY-SA 4.0, via Wikimedia Commons

Absolute vs. Relative Paths

  • Absolute paths start from the root directory /.
    • e.g., /, /home/user/file.txt, /home/user/data/.
  • Relative paths start from the current directory.
    • e.g., file.txt, user/data/file.txt.
    • . refers to the current directory (e.g., ./file.txt)
    • .. refers to the parent directory (e.g., ../file.txt). Can be chained multiple times (e.g., ../../file.txt)

Consider this example:

├── dir1
│   ├── dir2
│   │   └── file2
│   └── file1
└── dir3

../file1 is relative to file2 current position (dir2)

../../dir3 is relative to file2 current position (dir2)

ls useful options

ls shows files and directories in the current directory. You can provide a path to list files in a different directory. Here are some useful options:

  • ls -l: List files with details.
  • ls -a: List all files, including hidden ones.
  • ls -lh: List files with human-readable sizes.
  • ls -t: List files sorted by modification time.
  • ls -S: List files sorted by size.
  • ls -R: List files recursively.
  • ls -r: List sorted files in reverse order.
  • ls -1: List files in a single column.

You can combine options, e.g., ls -lhSr /home/user/data to list files in /home/user/data folder with human-readable sizes ordered by size in ascending order (bigger files on bottom).

Useful options for other commands

  • Without a path:
    • cd: (without any arguments) change to your home directory
    • cd -: change to the previous directory
  • With a path (relative or absolute)
    • mkdir -p: create a directory with its parents if they do not exist
    • rm -r: remove directories and their contents recursively (use with caution)
    • rm -i: prompt before removing files
    • mv -i: prompt before overwriting files
    • cp -r: copy directories and their contents recursively
    • cp -i: prompt before overwriting files

Can you guess the difference between rm -r and rmdir?

Wildcards

Wildcards are characters that help match file names based on patterns. Ex:

  • *: Matches any number of characters (file* matches file1, file2, fileverylong etc.)
  • ?: Matches a single character (file? matches file1, file2, but not fileverylong)
  • [ ]: Matches any character within the brackets (file[12] matches file1, file2, but not file3 or fileverylong. file[1-9] to match file with any digit)
  • { }: Matches any of the comma-separated word (file{1,2,verylong} matches file1, file2 and fileverylong)

Special characters

Some characters have special meanings in the shell:

  • ~: expands to the home directory (cd ~, cd ~/data)
  • $: refers to an environment variable (echo $HOME, echo $PWD)
  • ;: separates commands in one line (execute commands with this order e.g. cd /tmp; ls first change to /tmp then list files)
  • \: escapes the next character (ls file\ with\ spaces.txt)
  • ': preserves the literal value of all characters enclosed (echo 'Today is $(date)' will print Today is $(date))
  • ": preserves the literal value of all characters enclosed, but allow for variable expansion, command substitution, and escape sequences (echo "Today is $(date)" will print Today is <current date>)
  • #: comments the rest of the line (# this is a comment). Not executed.

File Permissions

Each file has three types of permissions: read, write, and execute. These permissions are set for three types of users: owner, group, and others.

  • r: read permission
  • w: write permission
  • x: execute permission
  • -: no permission

You can inspect permissions using ls -l, near the file name. For example, rwxr-xr-- means:

  • Owner has read, write, and execute permissions.
  • Group has read and execute permissions.
  • Others have only read permission.

Change File Permissions (UGO)

You can change file permissions using chmod command. The general syntax is:

chmod [options] mode file

where mode can be:

  • u: user (owner)
  • g: group
  • o: others
  • a: all (u, g, o)
  • +: add permission
  • -: remove permission
  • =: set permission

For example, to give execute permission to the owner of a file:

chmod u+x file

Stdin, Stdout, Stderr

Every process in Unix has three standard streams:

  • Standard Input (stdin): Input from the keyboard or another process.
  • Standard Output (stdout): Output to the terminal or another process.
  • Standard Error (stderr): Error messages to the terminal or another process.

By default, stdin is the keyboard, and stdout and stderr are the terminal. You can redirect these streams:

  • >: Redirect stdout to a file (ls > files.txt)
  • >>: Append stdout to a file (ls >> files.txt)
  • 2>: Redirect stderr to a file (ls non_existent_file 2> errors.txt)
  • &>: Redirect both stdout and stderr to a file (ls non_existent_file &> output.txt). Its equivalent to > output.txt 2>&1
  • <: Redirect stdin from a file (wc -l < files.txt)

Pipes

Pipes (|) connect the stdout of one command to the stdin of another. For example:

ls -l | wc -l

This command lists files in the current directory and counts the number of lines in the output.

You can chain multiple commands using pipes:

ls -l | grep myfile | wc -l

This command lists files in the current directory, filters lines containing myfile, and counts the number of lines.

Environment Variables

Environment variables are key-value pairs that store information about the environment. Some common environment variables:

  • HOME: Home directory
  • PATH: List of directories to search for executable files
  • PWD: Present working directory
  • OLDPWD: Previous working directory
  • USER: Current user
  • SHELL: Current shell

You can access environment variables using $, for example echo $HOME prints the home directory (to stdout).

You can use environment variables in scripts or commands, for example: cd $HOME or cp $OLDPWD/file.txt .

Aliases

Aliases are shortcuts for commands. You can define aliases in the shell configuration file (e.g. ~/.bashrc). For example:

alias ll='ls -l'

This command creates an alias ll for ls -l. You can use ll instead of ls -l.

You can list all aliases using alias command. To remove an alias, use unalias command:

unalias ll

Exercise

  • How many aliases are defined in your terminal?
  • How many commands do you know?

Access file content

You can access the content of a file using cat, less, more, or head and tail commands.

  • cat: Concatenate and display file content
  • less: Display file content page by page
  • more: Display file content page by page
  • head: Display the first lines of a file
  • tail: Display the last lines of a file

For example, to display the first 10 lines of a file:

head file.txt

Search file content

You can search for text in files using grep command. The general syntax is:

grep [options] pattern file

where pattern is the text to search for. For example:

grep 'pattern' file.txt

This command searches for pattern in file.txt and prints matching lines.

You can use regular expressions in grep to search for more complex patterns. For example:

grep -E 'pattern1|pattern2' file.txt

This command searches for pattern1 or pattern2 in file.txt.

Find files

You can find files in the filesystem using find command. The general syntax is:

find [path] [options]

where path is the directory to search in. For example:

find /tmp -iname '*.txt'

This command searches for files with .txt extension in /tmp directory. More options:

  • -name: Search by exact name
  • -type: Search by file type (e.g. f for file, d for directory)
  • -size: Search by file size (+ for larger, - for smaller. e.g. +1M)
  • -exec: Execute a command on found files (requires {} as a placeholder and \; at the end of the command)

Utilities

There are many utilities available in Unix-like systems. Some common utilities:

  • awk: A powerful text processing tool
  • sed: A stream editor for filtering and transforming text
  • cut: Extract columns from each line of files
  • sort: Sort lines of text files
  • uniq: Report or omit repeated lines
  • wc: Print newline, word, and byte counts for each file
  • diff: Compare files line by line
  • file: Determine file type
  • du: Estimate file space usage
  • man: Display manual pages
  • which: Locate a command

Utilities exercise

  • List current directory contents using ls command and redirect the output to files.txt.
  • Count the number of files in the current directory using ls and wc commands.
  • Find all files with .txt extension in the current directory using find command.
  • Display the first 5 lines of files.txt using head command.
  • Rename files.txt to all_files.txt using mv command.
  • ls a non-existent file and redirect the error to errors.txt.
  • Concatenate all_files.txt and errors.txt using cat command and redirect the output to all_files_errors.txt.
  • Display manual pages for bash (man bash). Search for Commands for Moving section: How I can move to the beginning of the line? How I can move to the next word?
  • GitPod users: locate file LSPAN24-practical1.qmd, grep for ## characters (mind # is a comment character), then order titles alphabetically using sort

Curl vs Wget

curl and wget are command-line tools for transferring data with URLs. Some differences:

  • curl: Supports multiple protocols (HTTP, HTTPS, FTP, etc.), more flexible, but less user-friendly.
  • wget: Supports HTTP and FTP, more user-friendly, but less flexible.
  • curl is more suitable for scripting and automation.

You can use curl and wget to download files from the web. For example:

curl -O https://example.com/file.txt

This command downloads file.txt from https://example.com to the current directory.

Compression

You can compress and decompress files using gzip, bzip2, and xz commands. For example:

gzip file.txt

This command compresses file.txt to file.txt.gz. To decompress:

gunzip file.txt.gz (or gzip -d file.txt.gz)

You can use bzip2 and xz commands similarly. For example to compress:

bzip2 file.txt

xz file.txt

To decompress:

bunzip2 file.txt.bz2 (or bzip2 -d file.txt.bz2)

unxz file.txt.xz (or xz -d file.txt.xz)

Tar

You can create (-c) and extract (-x) tar archives using tar command. For example:

tar -cvf archive.tar file1 file2

This command creates archive.tar containing file1 and file2. This archive is not compressed and have the same size of the sum of file1 and file2 sizes. To extract:

tar -xvf archive.tar

You can compress and extract compressed tar archives in one step. For example:

tar -czvf archive.tar.gz file1 file2

This command creates archive.tar.gz containing file1 and file2. To extract:

tar -xzvf archive.tar.gz

Mind to the z option for gzip, j for bzip2, and J for xz. f need to be followed by the archive name.

Tar (remember)

Credits programmerhumor.io

Tar (remember /2)

Credits xkcd.com

Editors

There are many text editors available in Unix-like systems. Here some common editors available in terminal:

  • nano: Simple and user-friendly text editor
  • vim: Powerful and highly configurable text editor
  • emacs: Extensible and customizable text editor

Tip

GitPod users have access to Visual Studio Code, a powerful and highly configurable text editor.

Introduction to virtual environment

Virtual environments are isolated environments for software development. They allow you to install dependencies and packages without affecting the system-wide installation. Some common tools for creating virtual environments:

Introduction to Conda

  • Conda: A package manager and environment management system for installing and managing software packages and dependencies, particularly for Python and R.
  • Miniconda: A minimal installer for Conda that includes Conda, Python, and other essential packages.
  • Mamba: A faster, drop-in replacement for Conda. You can swap almost all commands between conda & mamba

Create an environment (from scratch)

We use conda command to manage environments with conda / miniconda:

  • replace with mamba if you have mamba installed.
  • --name: required to specify the name of the environment.
  • specifying versions helps the package resolver
# create an empty environment
conda create --name empty

# create an environment with some software
conda create --name python python ipython

# create an environment with a specific software version
conda create --name python3.10 python=3.10 ipython=8.25

Create an environment (from file)

We can also create an environment from a file. Note the env before the create command:

  • --file: specify the file containing the environment specifications
  • --name: override the name of the environment in the file
# create an environment from a file (use name in file)
conda env create --file environment.yml

# create an environment from a file (override name in file)
conda env create --file environment.yml --name myname

List and activate environments

  • conda env list: list all environments
  • conda activate <env_name>: activate an environment

Normally the prompt will change to show the active environment. Default installation have the base environment active at login

# Activate an environment
(base) gitpod ~ $ conda activate ognigenoma
(ognigenoma) gitpod ~ $

To deactivate an environment, use conda deactivate:

# Deactivate the current environment
(ognigenoma) gitpod ~ $ conda deactivate
(base) gitpod ~ $

You can activate more than one environment at a time. The last activated environment will be active. When you deactivate an environment, the previous environment will be activated.

Channels and repositories

  • defaults: the default channel for conda packages
  • R: a channel for R packages
  • bioconda: a channel for bioinformatics software
  • conda-forge: a community-driven collection of conda packages
# add a channel to the list of channels
conda config --add channels conda-forge

# add a channel to the list of channels
conda config --add channels bioconda

Tip

GitPod users: we have set up channels required for the practical with the suggested priority settings. You can see the settings in the .condarc file in your home directory. See more information on conda Managing Channels

Search for packages

Use conda search to search for packages in the configured channels. Wildcards can be used in the search:

# search for a package in the configured channels
conda search samtools

# search for a package in a specific channel
conda search --channel bioconda samtools

Tip

GitPod users: the channels are already configured for the practicals. You can search any package in the configured channels without specifying the channel.

Exercise

Search for the package samtools in the bioconda channel:

  1. What versions are available? What is the latest version? In which channel?
  2. Do the same for r-base package.

Install packages

  • conda install: install packages in the active environment
    • --name: specify the environment to install the package
    • --file: specify a file with the list of packages to install
# install a package in the active environment
# base environment is read-only for GitPod users!
conda install pandas

# install a package in a specific environment
conda install --name python3.10 pandas

# install packages from a file in the active environment
# (python format)
conda install --file requirements.txt

Exercise

Create an environment with samtools, tabix and bcftools packages. Activate the environment and check if the packages are installed. Then install seqkit package in the same environment.

Understanding the environment (exercise)

  1. Ensure the environment created in the previous exercise is active. Can you find where the samtools executable is located?
  2. Deactivate the environment and check if the samtools executable is available. Why is it not available?
  3. Can you figure out how conda makes the executables available in the active environment?

Tip

  • Use which to find the location of the executable.
  • Take a look to the environment variables in the active environment, for example $PATH.

Exporting an environment

  • conda env export: export the environment to a file
  • --name: specify the environment to export
  • --file: specify the file to export the environment to
  • --no-builds: exclude the build string from the exported file
# export the active environment to a file (using STDOUT)
conda env export > environment.yml

# export a specific environment to a specific file
conda env export --name python3.10 --file environment.yml

Exercise

Export an environment to a file; then export the same environment with --no-builds option to another file. Compare the two files with diff (try diff -y for a more readable output).

Some tips

  • conda list: list all packages installed in the active environment
  • Install packages with versions: conda install pandas=1.3.3
  • Create environments by scope: don’t pull all packages in the same environment
  • Limit the conda-forge channel usage if possible
  • conda list --revision: list all revisions of the environment
  • conda install --revision 1: revert environment to a previous revision
  • conda env remove --name <env_name>: remove an environment
  • conda create --clone <env_name> --name <new_env>: clone an environment
  • conda clean --all: clean the cache and unused packages

Practical with conda: get genome data

Let’s collect some genome data to make an example. We will use the CLI tools made available by NCBI, datasets and dataformat, to collect ARS-UCD1.2 data from the NCBI database. Next, we will use seqkit to manipulate file headers and then we will bgzip to pack the sequence files.

  1. Create one conda environment with ncbi-datasets-cli, jq, seqkit and tabix packages

  2. Go the NCBI Datasets page and search for cow (Bos taurus (cattle) will be suggested). You will open the new page for NCBI Taxonomy ID: 9913.

  3. Click on ARS-UCD2.0 link, below the Genome section an over the Download button (don’t download the genome from this page)

Genome assembly and legacy versions

In the practical we will use the ARS-UCD1.2 (GCF_002263795.1) version of the genome, however the latest version is ARS-UCD2.0 (GCF_002263795.3):

  1. Go to the bottom of the page and search for the GCF_002263795.1 accession for the ARS-UCD1.2 version (will be in the refseq column) and click on it.
  2. In the top of the page, near the Download button we have some different ways to collect data. We don’t want to download the genome on on our laptop, so click on the datasets tab, just near the download button.
  3. A pop-up window will appear with the command to download the genome data. Copy the command by clicking on the Copy button.

NCBI Datasets CLI

datasets is a command-line tool that is used to query and download biological sequence data across all domains of life from NCBI databases. See the documentation for more information.

For example, retrieve the same information as before using the accession number: pipe the result to jq to format the output:

datasets summary genome accession GCF_002263795.1 | jq

The same command can be use to download the genome data: paste the command you’ve copied from the NCBI Taxonomy page and add two additional options:

datasets download genome accession GCF_002263795.1 \
  --include gff3,rna,cds,protein,genome,seq-report \
  --dehydrated --filename ARS-UCD1.2.zip

Note

The \ (escape character) is used to break the command in multiple lines: it is not necessary if you paste the command in one line: but if you paste the command in multiple lines it prevents the command from being executed before you finish typing it.

NCBI Datasets CLI (2)

  • --dehydrated: download the data in a dehydrated format: the data is downloaded in a format that can be rehydrated using the datasets tool. This is required if you need to download a lot of data. See Download large genome data packages for more information
  • --filename: specify the name of the file to download the data to
  • --include: specify the data types to download: if we are not interested in all data types we can exclude some of them

Now unzip the downloaded archive in a new directory (since the archive will place stuff in the current directory):

unzip ARS-UCD1.2.zip -d ARS-UCD1.2
  • -d: specify the directory to extract the files to

Rehydrate the data

Take a look to see the downloaded data: we have not any data! the only data we have are some metadata and the URL were files can be downloaded.

Is now time to rehydrate data:

datasets rehydrate --directory ARS-UCD1.2
  • --directory: this is the top level directory in which you have decompressed data with unzip

Now the data should be downloaded in the same directory where the metadata is located. You can check the data with ls or tree:

tree -phC ARS-UCD1.2
  • tree: list the directory structure in a tree-like format
    • -p: show permissions
    • -h: show sizes in human readable format
    • -C: colorize the output

Deal with genome sequence

Take a minute to look at the files you have downloaded, especially the genome sequence: how many sequences are in the file? what is the format of the file?

We can use grep '>' to extract the sequence names from a fasta file and then counting the number of lines, however we can use a fasta/fastq manipulation program like seqkit, which can do this and much more:

seqkit stats GCF_002263795.1_ARS-UCD1.2_genomic.fna
  • seqkit stats: show statistics for the input file

There are a lot of sequences in the file, you can inspect the sequence names with

seqkit seq -n GCF_002263795.1_ARS-UCD1.2_genomic.fna
  • seqkit seq: transform sequences (extract ID, filter by length, remove gaps, reverse complement…)
    • -n: only print names/sequence headers
    • -i: print IDs instead of full headers

Sequence report

The sequence_report.jsonl file contains information about the sequences in the genome assembly. We can use jq to inspect the file, or we can use the dataformat command to transform this information in a table:

dataformat tsv genome-seq --inputfile sequence_report.jsonl
  • dataformat tsv: transform the input data in a tab-separated format
    • genome-seq: the type of source data to transform
    • --inputfile: the input file to transform
    • --fields: specify the fields to include in the output

Note

The dataformat command requires JSON-lines formatted NCBI Datasets reports into other formats. It can work in a pipe with the datasets command, however it requires the --as-json-lines option:

datasets summary genome accession GCF_002263795.1 --as-json-lines | dataformat tsv genome | less -S

Extract chromosomes from genome

Suppose we need to get rid of un-assembled sequences from the genome: we can use seqkit to extract sequences by name. First, extract the sequences we want by ids:

jq -c 'select(.role == "assembled-molecule")' sequence_report.jsonl \
  | dataformat tsv genome-seq --fields refseq-seq-acc > ids.txt
  • -c: compact output (required by dataformat as input)
  • select(.role == "assembled-molecule"): select only sequences that are assembled molecules by their role
  • refseq-seq-acc: the field to extract from the input data

Now we can use seqkit to extract the sequences by ids:

seqkit grep -f ids.txt GCF_002263795.1_ARS-UCD1.2_genomic.fna > ARS-UCD1.2_chromosomes.fna

Exercise

  • Can you create the sequence ids file using awk, cut or grep instead of jq?

Rename sequences

Now the sequence names are the RefSeq accession numbers: Let’s rename the sequences to include the chromosome name as id: this could be done again with seqkit, with a text file with the old name as key and the new name as value:

jq -c 'select(.role == "assembled-molecule")' sequence_report.jsonl \
  | dataformat tsv genome-seq --fields refseq-seq-acc,chr-name > alias.txt

This is the same command we use before, but now we are extracting also the chromosome number. Now we can use seqkit to rename the sequences:

seqkit replace -p '^(\S+)(.+?)$' -r '{kv} \$1\${2}' -k alias.txt \
  -o ARS-UCD1.2_chromosomes_renamed.fna ARS-UCD1.2_chromosomes.fna
  • seqkit replace: replace patterns in sequences
    • -p: the pattern to search for
    • -r: the replacement pattern
    • -k: the key-value file with the replacements
    • -o: the output file

Compress the genome sequence

The last operation can be to compress the genome sequence file: we can do this with bgzip in order to have a compressed file that can be indexed with other software like samtools:

bgzip ARS-UCD1.2_chromosomes_renamed.fna

Check that sequence names are in the proper format

seqkit stats ARS-UCD1.2_chromosomes_renamed.fna.gz
seqkit seq -n ARS-UCD1.2_chromosomes_renamed.fna.gz

Exercise

Can you optimize the previous commands to avoid creating intermediate files?

Tip

You can use pipes to connect the output of a command to the input of another command. Ideally, the original file downloaded from NCBI should not be modified (but can be compressed)
